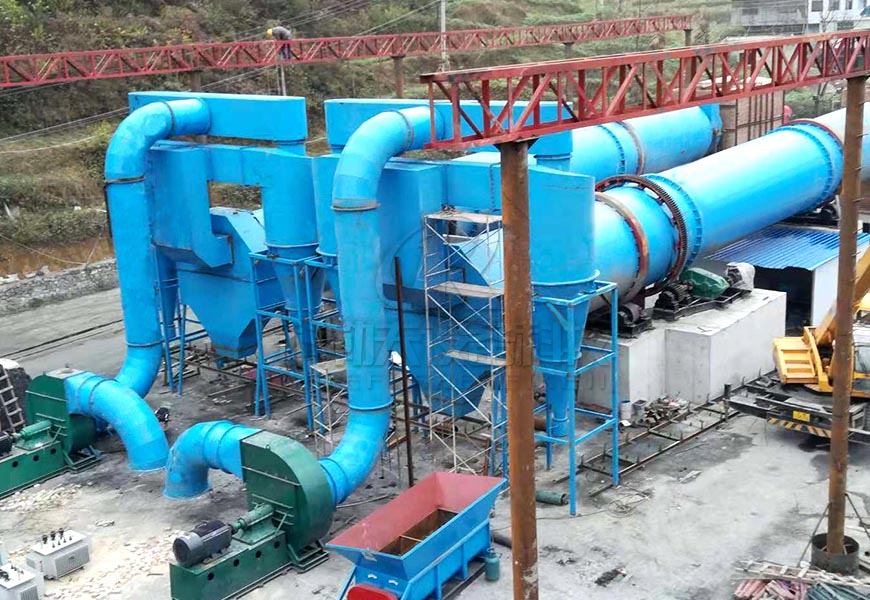

Two coal slime dryer production lines are put into operation in Ordos, Inner Mongolia
The enterprise is a coal slime recycling enterprise in Inner Mongolia. Due to the expansion of the scale of the industry, it is necessary to increase the coal slime drying production line. After the understanding of our company and field investigation, I was attracted by the professional technology and excellent process of Kolev company, and purchased my company's two complete sets of coal slime drying production line.
- Dispose of materials：slime
- Processing capacity：3000t/d
Product Introduction
The enterprise is a coal slime recycling enterprise in Inner Mongolia. Due to the expansion of the scale of the industry, it is necessary to increase the coal slime drying production line. After the understanding of our company and field investigation, I was attracted by the professional technology and excellent process of Kolev company, and purchased my company's two complete sets of coal slime drying production line.
Customer Introduction
The enterprise is a coal slime recycling enterprise in Inner Mongolia. Due to the expansion of the scale of the industry, it is necessary to increase the coal slime drying production line. After the understanding of our company and field investigation, I was attracted by the professional technology and excellent process of Kolev company, and purchased my company's two complete sets of coal slime drying production line.
Technological Process
This production line is mainly composed of hot blast stove, dryer main engine, conveyor, dispersing feeder, discharging device, induced draft fan, power distribution cabinet, dust removal equipment, control system and other accessories. Detailed technological process is as follows: Material in the large guide Angle of the guide plate and material curtain state, the inside and outside of the coal water quickly evaporated into steam, steam is then pumped away by the induced draft fan, so as to achieve the purpose of drying, after heat exchange to complete the drying operation of the material into the discharge process, the tail gas of the production line through the multi-stage dust removal device for follow-up processing.
Technological Advantage
1: The new feeding and discharging device eliminates the phenomenon of feeding blockage, discontinuity, uneven and material return in the drum dryer, and reduces the load of the dust removal system. 2: dryer anti overload ability is strong, large processing capacity, less fuel consumption, low drying cost. 3: Dryer to achieve "zero horizontal thrust", greatly reduce the wear of the retaining wheel, stable and reliable cylinder operation. 4: The new internal structure strengthens the cleaning and heat conduction effect of dispersed materials, eliminates the sticky phenomenon of the inner wall of the cylinder, and has stronger adaptability to the material moisture and viscosity. 5: The dryer adopts the "aligning supporting wheel device", so that the supporting wheel and the rolling ring with linear contact forever, thus greatly reducing the wear and power loss.
