In view of the Sludge dryer has many adverse drying conditions such as high moisture, high viscosity, high water holding capacity and so on, the new-generation sludge dryer complete set system of Kolev equipment adopts the new-type feeding and discharging device and the special dispersing device, which eliminates the cylinder dryer feeding clogging, discontinuity, uneven and material reflux phenomenon, and reduces the dust removal system load.
- Capacity：0.5-100t/h
- Power：3-185KW
- Input moisture：40%
- Output moisture：15%(adjustable)
Product Introduction
In view of the Sludge dryer has many adverse drying conditions such as high moisture, high viscosity, high water holding capacity and so on, the new-generation sludge dryer complete set system of Kolev equipment adopts the new-type feeding and discharging device and the special dispersing device, which eliminates the cylinder dryer feeding clogging, discontinuity, uneven and material reflux phenomenon, and reduces the dust removal system load.
Applicable Material
Strong anti - overload capacity, large processing capacity, less fuel consumption, low drying cost
Sludge, coal slime, peat, raw coal, flotation cleaned coal, paste coal, mixed cleaned coal, blast furnace slag, coking and other secondary coal slime.
Product Features
- 01
-
High degree of continuous automation
The industrialization, continuity and automation of coal slime drying have been realized by using a new type of non-power crushing device.
- 02
-
Upgraded version of internal structure, large processing capacity
The use of downflow mode, unique inlet and outlet device, new internal structure, can change the operation parameters according to different material properties and finished product requirements, its strong load resistance, large handling capacity, less fuel consumption, low drying cost.
- 03
-
Energy saving, environmental protection and high efficiency
Enhanced dust removal device, a variety of heat sources to meet the environmental requirements of different areas.
- 04
-
Simple structure and stable performance
Aligning tugboat design, achieve

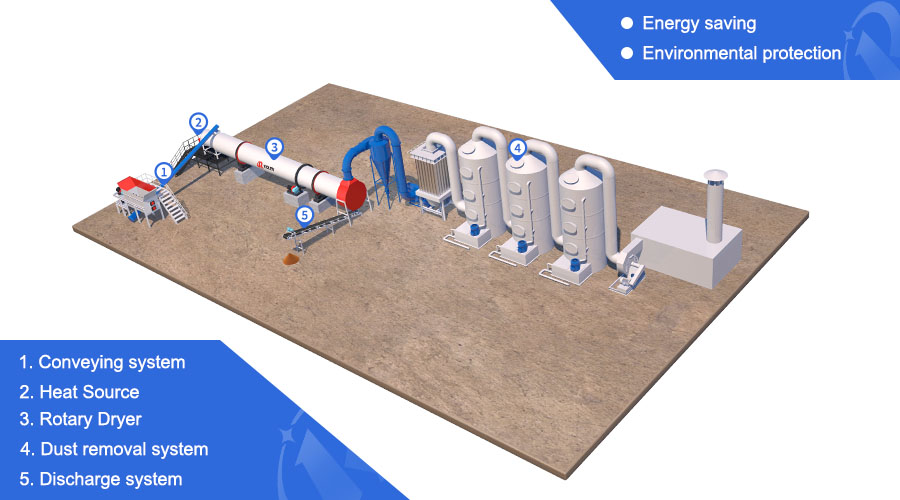

Working Principle
1.Sludge dryer has a certain viscosity. During the drying process, when the sludge enters the dryer and then enters the following working area: guide area, cleaning area, inclined lifting plate area, discharge area.
2.Wet sludge into the guide material area and hot air touched after evaporation of a large amount of water, then into the cleaning area. The lifting plate make the material form curtain state, cleaning area is provided with a cleaning device, which can quickly clean off the sludge bonding cylinder wall. In this process, it can also be broken pellet agglomeration, increasing the heat exchange area and improving the drying rate.
3.After drying the finished product moisture standard, it will into the final discharge area. The material rolls to the discharge port to complete the whole drying process.
4.The reasonable structural design of the supporting wheel and the diversified lubrication methods make the supporting wheel less prone to wear and shaft breakage, shorten the replacement cycle, and extend the service life of the supporting wheel.
5.The combination of the spiral guide plate and the new lifting plate increases the fluidity and heat conduction of the material, allowing the material to enter the drying barrel and form a material curtain, which is more adaptable to the moisture and viscosity of the material.
6.The dryer system has good sealing performance，Inlet and outlet head adopts special seal to effectively reduce heat loss.
7.We accept customization of dryers made of different materials, such as carbon steel, stainless steel, special alloys, etc. Selection of dryer base, dust removal equipment, feeding and discharging equipment, and heat source equipment.
8.A variety of heat source equipment, you can choose the most suitable one according to customer conditions,The system is equipped with a PLC system and a video monitoring system, with a high degree of automation and simple operation.
9.Provide product quality assurance, with CE IOS certification
Technical Parameter
| product standard（m) | Capacity（t/h) | Feed moisture（%） | Final Moisture(%) | Power(KW) |
|---|---|---|---|---|
| 0.8*8 | 0.5-3 | 50-30% |
15%-1% | 3KW |
| 1*10 | 1-5 | 15%-1% | 5.5KW | |
| 1.2*12 | 2-8 | 15%-1% | 11KW | |
| 1.6*16 | 6-10 | 15%-1% | 15KW | |
| 1.8*16 | 8-15 | 15%-1% | 18.5KW | |
| 2*18 | 10-20 | 15%-1% | 22KW | |
| 2.2*18 | 12-25 | 15%-1% | 30KW | |
| 2.4*22 | 15-30 | 15%-1% | 45KW | |
| 2.6*24 | 18-35 | 15%-1% | 55KW | |
| 2.8*26 | 20-40 | 15%-1% | 75KW | |
| 3*28 | 25-50 | 15%-1% | 90KW | |
| 3.2*28 | 30-60 | 15%-1% | 110KW | |
| 3.4*30 | 35-70 | 15%-1% | 132KW | |
| 3.6*32 | 40-80 | 15%-1% | 160KW | |
| 3.8*32 | 50-100 | 15%-1% | 185KW |
